Small desk-top Vertical Electric Roll Mill

Click the thumbnail images to enlarge for more detail
(1) Lifting Point (2, 3) Foot Pedal & Connector (4) Power Connector

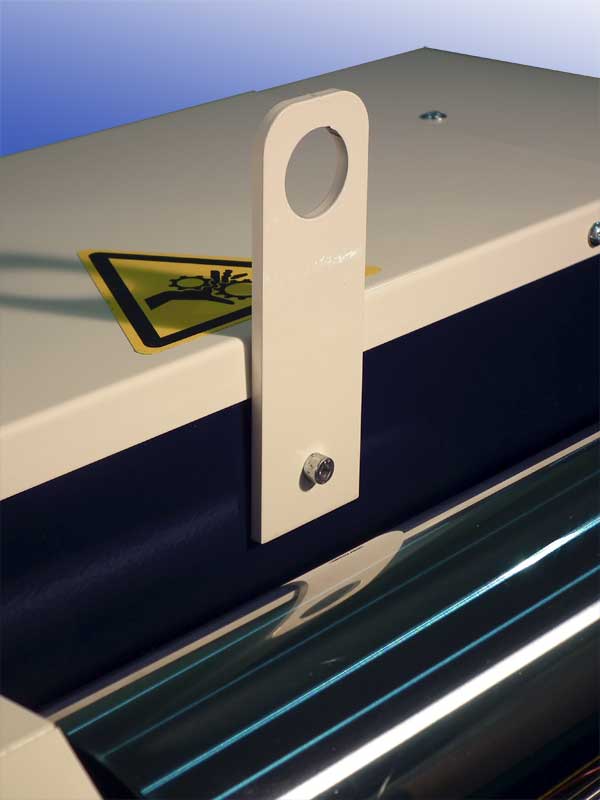

Table Top Roll Mill - Lifting Point Attached

Table Top Roll Mill - Foot Pedal.

Table Top Roll Mill - Foot Pedal Connector.

Table Top Roll Mill - Power Connector.

Table Top Roll Mill - Rollers Gap Control.

Table Top Roll Mill - Reset Button.

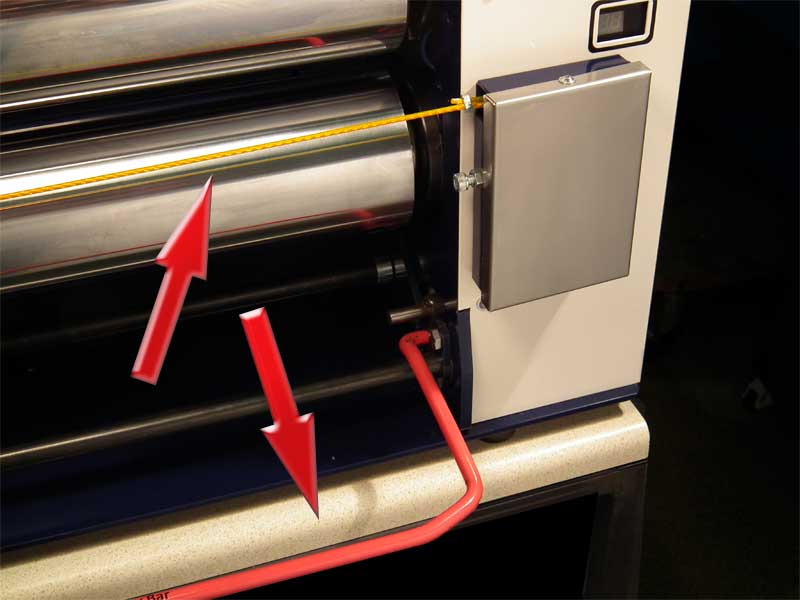

Table Top Roll Mill - Emergency Stop Cord and Bar.

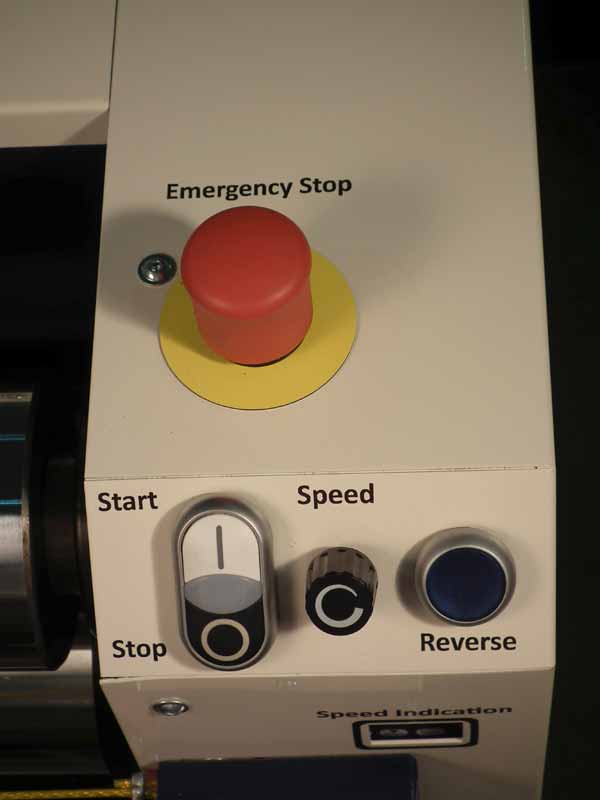

Table Top Roll Mill - Emergency Stop Button.

Small Electric Roll Mill - CE Certification
It has forward and reverse speeds for hand use and it has a safety wire.
A unique safety release bar to meet CE marking.
The machine is set up for forward and reverse manually.
Forward and reverse jog.
Foot pedal action forward and reverse.
Width of Steel, Chrome plated Rollers = 400 mm
Adjustable thickness form 0.5 mm to 10 mm
Lifting point incorporated for easy of installation.

Specification:
Size of machine.
Full length = 630 mm
Roller length = 400 mm
Roller diameter = 100 mm
Width = 470 mm
Height = 430 mm
Weight = * MW-10 (approx. 140 Kg)

Electric Power Supply.
Available in 110 volts and 220/240 V
Power Consumption 500 Watts

New model autumn 2010
